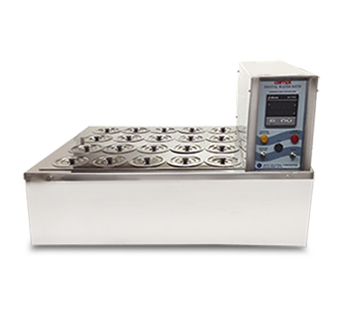

Water Bath (Stirrer Model)

GMP Models

  • Double walled in construction with Inner made of SS 304 & Exterior SS 304 Matt/Buff or mirror finish.
  • Fully argon welded for leak proof durability & elegant in design.
  • High quality compressed glasswool provided in between walls to minimize the heat loss.
  • Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT – 100 sensor.
  • Single Speed Stirrer motor is provided for Internal Circulation & Better Temp. uniformity
  • Perforated false bottom platform & lid of SS provided.
  • Special SS Water Heater (ISI Marked) provided for heating.
  • Drainage cock for outlet provided.
  • Automatic Heater cut off after reaching desired set temperature.
  • Output of heater power easily controllable.
  • Usable with round bottom flask – keeping on lid only.
  • Temp. Range :- 5°C Above ambient to 99°C.
Water Bath (Stirrer Model)
Cat No.
Inner Size (L x W x D)
LID
Watts
Temp. Accuracy
CIC - 2 AP
10" x 17" x 4"
6 Holes of 3" Dia
1.0 k.w.
± 0.3oC
CIC - 2 BP
19" x 12" x 4"
12 Holes of 3" Dia
1.5 k.w.
± 0.3oC
CIC - 2 CP
21" x 18" x 4"
20 Holes of 3" Dia
3.0 k.w.
± 0.3oC

Optional

  • AUDIO ALARM facility to alert for Temp. Overshoot/undershoot.
  • TIMER facility.
  • Low water level audio alarm facility.
  • PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
