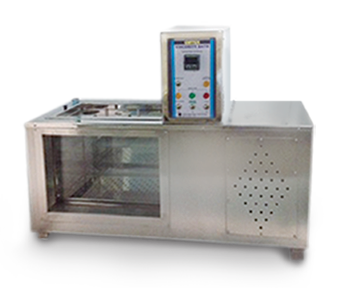

Viscocity Bath

Regular – GMP - Model

  • Double walled in construction with Inner made of SS 304 & Ext. GI Powder Coated Shade in REGULAR MODEL.
  • Inner made of SS 316/SS 304 & Exterior SS 304 Matt/Buff finish in GMP MODEL.
  • The high grade compressed Puff/Glasswool insulation is provided in between the walls to minimize the heat loss.
  • The Temp. is being controlled by Automatic Auto tuning type Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT-100 Sensor.
  • The unit consist with Stirring assembly motor for Internal Circulation & Temp. uniformity.
  • A perforated SS bottom platform is provided in the bath.
  • Heating is provided by ‘U’ type SS special heaters.
  • 2 Nos. Handles at adjacent sides of the bath are provided for easy lifting.
  • A drainage at the side of the bath is provided for outlet purpose.
  • The Illumination by fluorescent tube at the back of the bath is provided for clear visibility of test.
  • A Glass Window is provided at the front for clear observation of test.
  • Cooling model consists hermetically sealed compressor, condenser, fan motor etc. and are safely placed below or one side of the unit
  • Cooling Refrigerant is CFC free.
Viscocity Bath
Cat No.
Inner Size (L x W x D)
Visco-Meter Accomodate
Temp. Range
Temp. Accuracy
CIC - 101 A
14" x 7" x 13"
2
5oC Above ambient to 199.9oC
± 0.5oC
CIC - 101 B
19" x 7" x 13"
4
5oC Above ambient to 199.9oC
± 0.5oC
CIC - 101 C
24" x 7" x 13"
6
5oC Above ambient to 199.9oC
± 0.5oC
CIC - 101 D
10" x 10" x 13"
2
-20oC to 99oC
± 0.5oC to ± 1oC
CIC - 101 E
10" x 10" x 13"
2
-50oC to 60oC
± 0.5oC to ± 1oC
CIC - 101 F
10" x 10" x 13"
2
-70oC to 50oC
± 0.5oC to ± 1oC

Optional

  • Temp. Accuracy of ± 0.05°C can be provided at extra cost.
  • SS 304 / SS 316 Viscometer holders.
  • PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
