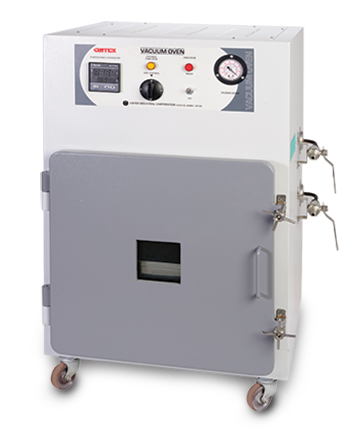

Vacuum Oven

Round – Rectangular

  • Specially designed heating element that eliminate exposed heaters giving smooth Chamber surface.
  • The heat tempered full length Inner glass having window allows observation of load.
  • Radiant warm wall heat guarantees even heat distribution.
  • Chamber 304 SS with Exterior GI Powder Coated finish in REGULAR MODEL.
  • Interior 304 Matt/Buff finish & Exterior 304 SS Matt finish in GMP MODEL.
  • Two 316/304 SS valve-one for evacuuming and other for perging/flushing.
  • Vacuum levels are controlled between 1” and 30”Hg.
  • Food grade silicon door gasket and highly alingned sturdy door fitting.
  • Perforated SS buffed trays for round models.
  • Smooth edges non perforated trays for Rectangular Models.
  • Automatic autotuning Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT - 100 sensor.
Vacuum Oven

Reference Model Rectangular

Regular Model
GMP Model
Inner Size (L x W x D)
Volume
Rating
Shelves
Temp. Range
62 A
63 A
12" x 12" x 12"
28 Ltrs.
1000 W
2
50oC to 200oC
62 B
63 B
14" x 14" x 14"
45 Ltrs.
1500 W
2
50oC to 200oC
62 C
63 C
18" x 18" x 18"
96 Ltrs.
2000 W
3
50oC to 200oC
62 D
63 D
20" x 20" x 20"
132 Ltrs.
2200 W
4
50oC to 200oC

Reference Model Round (Dia x Depth)

Regular Model
GMP Model
Inner Size (L x W x D)
Volume
Rating
Shelves
Temp. Range
61 A
60 A
9" x 12"
12.5 Ltrs.
700 W
2
50oC to 200oC
61 B
60 B
12" x 15"
28 Ltrs.
900 W
2
50oC to 200oC
61 C
60 C
15" x 18"
52 Ltrs.
1100 W
3
50oC to 200oC
61 D
60 D
18" x 24"
100 Ltrs.
1600 W
3
50oC to 200oC

Optional

  • PLC Based Touch screen Control System with printer OUTPUT facility.
  • SAFETY CONTROLLER required to take over control in case of Temp. overshoot or if main PID Temp. Controller fails
  • PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
  • TOUCH SCREEN HMI facility.
  • AUDIO ALARM facility to alert for Temp. Overshoot/undershoot.
  • TIMER facility.
  • 21 CFR PART 11 COMPLIANCE SOFTWARE for Data Management.
  • PROGRAMMABLE PID TEMPERATURE CONTROLLER..
