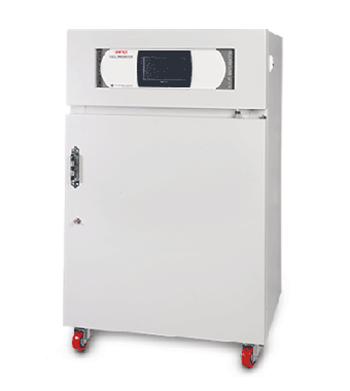

Pharma / Lab Refrigerator

  • Double walled having SS 304 Inner and Exterior GI Powder Coated finish in REGULAR MODEL.
  • Interior SS 304 and Exterior SS 304 matt finish in all GMP MODEL.
  • Units are highly insulated by PUFF/Wool between the walls to minimize the heat exchange.
  • Highly advanced CFC free cooling system includes hermetically sealed compressors, condensor & fan motor etc.
  • A full length Inner glass door for observation of test without disturbing temperature equilibrium.
  • A key lockable insulated door having positive door gasket seals door perfectly.
  • Mechanical convection system (Motorized Blower) ensures even air distribution within the chamber.
  • Heating is provided by ‘U’ type SS air heaters.
  • Removable SS wiremesh shelves or SS rod type shelves.
  • Automatic autotuning Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT – 100 sensor.
  • Electrical safety includes ELCB, Contactor and fuses.
Pharma Lab Refrigerator
Cat No.
Inner Size (L x W x D)
Temp. Range Temp. Accuracy
Shelves
CIC - 97
18" x 18" x 28" (5 CFT, 150 Ltrs.)
2oC to 8oC (Within ± 1oC)
2
CIC - 97
24" x 24" x 24" (8 CFT, 228 Ltrs.)
2oC to 8oC (Within ± 1oC)
3
CIC - 97
24" x 24" x 36" (12 CFT, 342 Ltrs.)
2oC to 8oC (Within ± 1oC)
3
CIC - 97
26" x 26" x 36" (14 CFT, 400 Ltrs.)
2oC to 8oC (Within ± 1oC)
4
CIC - 97
28" x 28" x 40" (18 CFT, 520 Ltrs.)
2oC to 8oC (Within ± 1oC)
4
CIC - 97
36" x 36" x 40" (30 CFT, 850 Ltrs.)
2oC to 8oC (Within ± 1oC)
5
CIC - 97
38" x 38" x 44" (36 CFT, 1040 Ltrs.)
2oC to 8oC (Within ± 1oC)
6

Optional

  • SAFETY CONTROLLER required to take over control in case of Temp. overshoot or if main PID Temp. Controller fails.
  • PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full
  • PLC Based Touch screen Control System with printer OUTPUT facility.
  • AUDIO ALARM facility to alert for Temp. Overshoot/undershoot.
  • TIMER facility.
  • 21 CFR PART 11 COMPLIANCE SOFTWARE for Data Management.
  • Standby cooling system.
  • Temperature Scanner having 4 temp. probes to monitor and record temp. inside the equipment with printing facility
