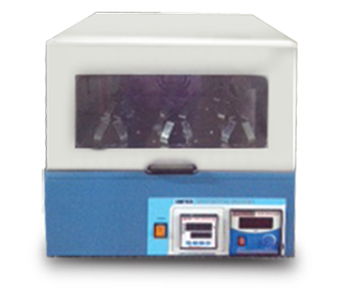

Orbital Shaking Incubator

  • Designed for the growth of biological cultures and the shaking of chemical solutions.
  • Bench-top controlled temperature incubator with precise dynamically balanced shaking apparatus.
  • Triple eccentric drive mechanism ensures reproducible, smooth rotating motion in 1” orbit.
  • Heavy duty, double walled incubation chamber with exterior powder coated finish and fully gasketted lid - in REGULAR MODEL.
  • Inner 316 S.S. / S.S.304 & Exterior 304 S.S. matt finish in GMP- MODEL.
  • Units are highly insulated by PUFF/Wool between the walls to minimize the heat exchange.
  • Highly advanced CFC free cooling system includes hermetically sealed compressor, condensor & fan motor.
  • Microprocessor based with Digital indicator with Digital RPM indicator.
  • Mechanical convection system (Motorized Blower) ensures even air distribution within the chamber.
  • The heating is provided by U Type SS Air Heater.
  • Viewing window on lid and illumination light allows sample viewing without disturbing the environment.
  • Selection of Heating Model and Cooling Model.
  • Speed Range : 50 to 200 RPM - with 25 mm orbit.
  • Interchangeable shaking platform - optional.
Orbital Shaking Incubator
Cat No.
Bath Size (L x W x D)
Model Type
Temp. Range
Platform Capacity
CIC - 81
20" x 18" x 18"
Heating
5oC above ambient to 60oC
9 Nos. x 250ml flask
CIC - 81
22" x 19" x 19"
Cooling
2oC to 60oC
9 Nos. x 250ml flask
CIC - 81
22" x 22" x 16"
Heating
5oC above ambient to 60oC
12 Nos. x 500ml flask
