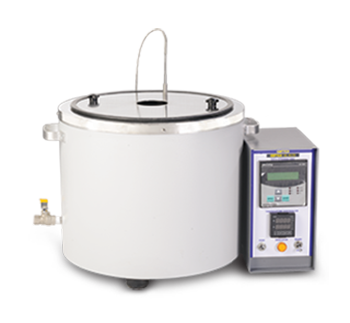

Oil Bath

Round - Regular – GMP - Model

  • Most useful for research and production applications such as Stability Testing, Conditioning, pre heating and tempering.
  • Chamber made of heavy gauge SS and are welded for leak proof durability exterior of GI Powder Coated Shade in REGULAR MODEL.
  • Chamber made of heavy gauge SS and are welded for leak proof durability exterior of SS 304 matt/buff finish in GMP MODEL.
  • Walls contains 1” or 2” of glass wool insulation to minimize heat loss.
  • A drainage cock is provided for outlet purpose.
  • 2 Nos. Handles at sides of bath is provided for easy lifting.
  • A special SS heater easily replaceable.
  • The Temp. is being controller by Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT - 100 sensor.
  • Automatic Auto tuning facility.
  • Output of heater easily controllable.
  • Automatic heater cut off facility after set temp. achieved (ON/OFF) action to save electricity.
  • Temp. Range: 5°C Above ambient to 300°C. Temp. Accuracy: Within ± 2°C.
  • Operates on 230 Volts A.C.
Oil Bath
Cat No.
Inner Size
Watts
CIC - 79
7” Dia x 5.5” Ht.(1 Ltr. Cap.)
1.0 k.w.
CIC - 79
8” Dia x 6 Ht.(2 Ltr. Cap.)
1.0 k.w.
CIC - 79
10” Dia x 9” Ht.(3 Ltr. Cap.)
1.2 k.w.
CIC - 79
11” Dia x 10” Ht.(5 Ltr. Cap.)
1.5 k.w.
CIC - 79
14” Dia x 11” Ht.(10 Ltr. Cap.)
2.0 k.w.
CIC - 79
16” Dia x 13” Ht.(20 Ltr. Cap.)
3.0 k.w.

Optional

  • PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
  • AUDIO ALARM facility to alert for Temp. Overshoot/undershoot.
  • TIMER facility.
  • Low oil level audio alarm facility.
