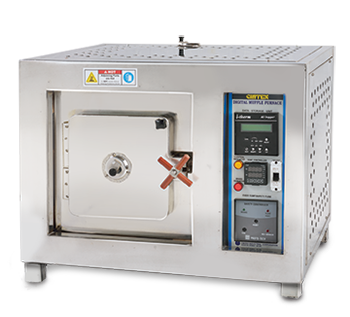

Muffle Furnace

Regular – GMP Models

  • Designed for multiple applications including heat treating, ceramic firing, ashing and thermocouple calibration.
  • Heavy duty construction for durability having powder coating finish in REGULAR MODEL.
  • Housing made of SS 304 or SS 316 matt/buff finish in GMP MODEL.
  • No exposed long lasting Kanthal A-1 heating elements.
  • Maximum energy efficiency which is achieved being use of high thermal efficient ceramic insulation surrounding the chamber.
  • Solid state safety fuse controller with automatic heater cut off facility in case of temp. overshoot.
  • Automatic autotuning Microprocessor based PID Temp. Controller with Dual Digital Indicator & CR/AL sensor.
  • Maximum Temperature: 350°C to 1200°C. Working Temperature: 400°C to 1160°C.
Muffle Furnace
Cat No.
Inner Size (L x W x D)
Outer Size (W x D x Ht.)(APP)
Watts
CIC - 106
4" x 4" x 9"
26" x 22" x 21"
1.8 k.w.
CIC - 106
6" x 6" x 12"
28" x 25" x 23"
3.5 k.w.
CIC - 106
9" x 9" x 18"
21" x 33" x 26"
4.5 k.w.
FURNACE - 1400oC TEMP. RANGE ALSO AVAILABALE

Optional

  • PROGRAMMABLE PID TEMPERATURE CONTROLLER.
  • PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
  • AUDIO ALARM facility to alert for Temp. Overshoot/undershoot.
  • 21 CFR PART 11 COMPLIANCE SOFWARE for Data Management.
