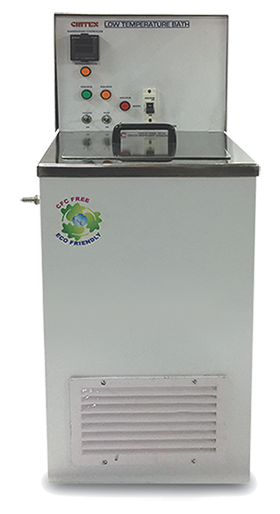

Low Temp. Bath

Table - Top Model

  • Ideal for chilling & condensing operations in Rotary Vacuum Evaporation, and for Viscometer purpose.
  • Double walled in construction Inner made of SS 304 & Exterior made of GI sheet duly finished in GI powder coated shade in REGULAR MODEL.
  • Inner SS 304/SS 316 & Exterior SS 304 Matt/Buff finish in GMP MODEL.
  • The high grade PUFF insulation provided in between the wall to minimize the heat loss.
  • The Temp. is being controlled by Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT-100 sensor.
  • Heating is provided by ‘U’ type SS heaters.
  • The cooling kit includes hermetically sealed compressor, condenser, fan motor etc. and are safely placed below the chamber. Cooling kit CFC free.
  • The unit consist with Pump cum Stirring Assembly for Internal as well as External circulation & better Temp. uniformity. The External Head upto 5/6 feet only.
  • Pump Output :- 5/7 Ltr. Per Minute.
  • Cooling Coil is provided inside the chamber.
Low Temp. Bath
Cat No.
Inner Chamber Size (L x W x D)
Capacity
Rating
Temp. Range
CIC - 82
6”L x 6” W x 6” D
5 Ltrs.
1.0 KW
- OoC TO + 90oC
CIC - 82
8”L x 14” W x 7” D
13 Ltrs.
1.2 KW
- OoC TO + 90oC

Optional

  • ALARM facility to alert incase of Temp. Overshoot.
  • PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
  • Flexible SS 304 braided hose pipe with insulation cover can be provided.
  • Low level detection of Brine/Fluid with Audio Alarm facility.
