Laminar Air Flow Cabinet

M.O.C: In MS powder coated in REGULAR MODEL

In SS 304 Matt/Buff finish in GMP MODEL

Filter Details:
  • Minipleat HEPA Filter - EU-13 rating (99.997% down to 0.3 micron).
  • Type of HEPA Filter Media: Make - M/s. Lydall/ M/s. Hollingsworth & Vose Sealant - Polyurethane
  • Pre Filter - EU – 5 rating (Eff.: 95% down to 5 micron) at working side.
  • Face Velocity - Face Velocity of HEPA is adjustable from 90 ± 20 FPM.
  • Air Cleanliness & Filter Efficiency - Dust counts exceeds Class 100 requirements as per ISO-14644 & IEST-RP-CC001.3.
  • Motor Blower - Custom built drive type motor with blower which is Dynamically & Statically balanced blower for less vibration & noise level.
Instrumentation & Accessories
  • Lights Intensity - U.V Light - 1 No And Diffused Fluorescent Lighting to provide an intensity of 300 Lux White Light Magnehelic Gauge - Digital, Range: 0 to 25 mm (to check Pressure drop across the Hepa filters)
  • Electrical Switches - On /Off Switch & indicator for Motor Blower On/Off Switch for Light.
    (220V, Single Phase, 50Hz, Lighting additional power point included 15/5 Amps switch socket combine)
  • Documentation:- DQ/IQ/OQ/PQ will be provided at the time of Installation also with MOC Certificate of SS 304 and Filter Test Certificate

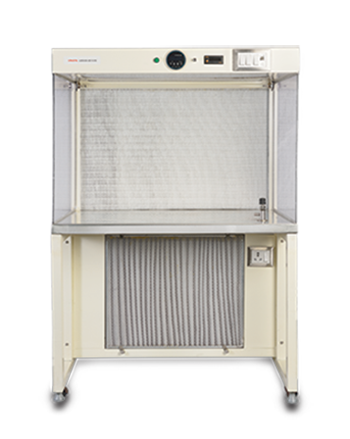

Laminar air free cabinate

REFERENCE – MODEL - HORIZONTAL

Cat No.
Working Area
Size of Filter
Hepa Filter
Pre Filter
Illumination With Unit
U. V. Light
CIC - 12 A
2' x 2' x 2'
2' x 2' x 3"
1
1
1 x 20 Watts
1 x 3'
CIC - 12 B
3' x 2' x 2'
3' x 2' x 3"
1
1
2 x 20 Watts
1 x 3'
CIC - 12 C
4' x 2' x 2'
4' x 2' x 3"
1
1
2 x 40 Watts
1 x 3'

REFERENCE – MODEL - VERTICAL

Cat No.
Working Area
Size of Filter
Hepa Filter
Pre Filter
Illumination With Unit
U. V. Light
CIC - 13 A
2' x 2' x 2'
2' x 2' x 3"
1
1
1 x 20 Watts
1 x 3'
CIC - 13 B
3' x 2' x 2'
3' x 2' x 3"
1
1
2 x 20 Watts
1 x 3'
CIC - 13 C
4' x 2' x 2'
4' x 2' x 3"
1
1
2 x 40 Watts
1 x 3'
