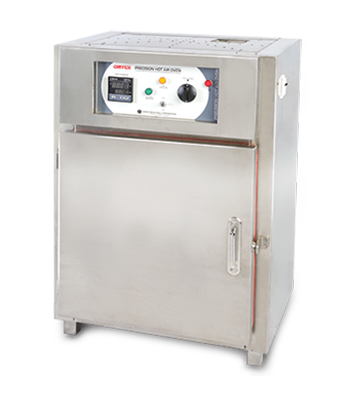

Hot Air Oven / LOD Oven

Regular – GMP - CGMP - Models

  • Triple walled in construction with Inner made of Stainless Steel – 304 & Exterior of GI/MS sheet duly finished in powder coated shade in REGULAR MODEL.
  • Inner SS 316 or SS 304 Exterior SS 304 Matt/Buff finish in GMP/CGMP Models.
  • High quality compressed glass wool or cerawool insulation between walls to Prevent heat – loss.
  • A fully insulated door with sturdy brass SS hinges with handle lock and gasket with perfect sealing is provided to open/ close the door.
  • Automatic autotuning Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT – 100 sensor.
  • Perforated Inner chamber for Air Circulation & uniform distribution of Temp.within chamber.
  • Air circulation by motorized blower for uniform distribution of Temp. within chamber.
  • The heating is provided by U Type SS Air Heater.
  • Available with SS 304 Rod type shelves.
  • Temperature Range: 5°C above ambient to 250°C. Temperature Accuracy: ± 1°C.
Hot Air Oven
Cat No.
Inner Size (W x D x Ht.)
Outer Size (W x D x Ht.)(APP.)
CFT
Ltrs.
Watts
Shelves
CIC - 15 / 19
14" x 14" x 14"
27" x 23" x 37"
1.6
45 Ltrs.
1500
2
CIC - 15 / 19
18" x 18" x 18"
31" x 25" x 41"
3.4
96 Ltrs.
2000
2
CIC - 15 / 19
18" x 18" x 24"
31" x 26" x 47"
4.5
128 Ltrs.
2500
3
CIC - 15 / 19
24" x 24" x 24"
37" x 33" x 47"
8
228 Ltrs.
3000
3
CIC - 15 / 19
24" x 24" x 36"
37" x 33" x 59"
12
342 Ltrs.
2500
3
CIC - 15 / 19
28" x 28" x 40"
41" x 37" x 64"
18
515 Ltrs.
4000
4
FLP Hot Air Ovens, FLP Double Door Hot Air Ovens Available. Hot Air Ovens Upto 400°C Available.

Optional

  • PLC Based Touch screen Control System with printer OUTPUT facility.
  • SAFETY CONTROLLER required to take over control in case of Temp. overshoot or if main PID Temp. Controller fails.
  • PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
  • TOUCH SCREEN HMI facility.
  • AUDIO ALARM facility to alert for Temp. Overshoot/undershoot.
  • TIMER facility.
  • Limit Switch is provided to disconnect heater supply automatically when door is open.
  • 21 CFR PART 11 COMPLIANCE SOFTWARE for Data Management.
  • PROGRAMMABLE PID TEMPERATURE CONTROLLER.
