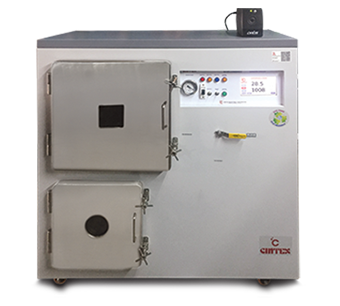

Freeze Dryer

LYOPHILIZER

  • Most ideal for lyophilizing in serum bottles vials and ampoules or other small glassware.
  • Chamber made of 304 SS and Outer made of GI sheets duly powder coated finish.
  • Equipped with a Mechanically cooling system for condenser temperature (- 50°C or - 80°C).
  • Vacuum gauge read from 1” to 30” Hg.
  • The Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT – 100 Sensor.
  • Selection of Model with drum type manifolds, with vertical type manifold or straight type manifold.
  • Selection of capacity 3 Ltr., 6 Ltr. and chambers drying.
  • Stainless steel manifolds are designed to provide maximum vapour flow and convenient access to all parts. Each ¾” port having quick seal valve for attaching variety of flask.
  • With Suitable Vacuum Pump.
Freeze Dryer
Cat No.
Capacity
Manifold
Condenser Temperature
CIC - 75 A
3 Ltrs.
Drum Type with 8 Port
-50oC
CIC - 75 B
6 Ltrs.
Straight Vertical Type with 12 Port
-50oC
CIC - 75 C
12" Dia x 12" Depth
Chamber Type
-50oC
CIC - 75 D
3 Ltrs.
Drum Type with 8 Port
-80oC
CIC - 75 E
6 Ltrs.
Straight Vertical Type with 12 Port
-80oC
CIC - 75 F
12" Dia x 12" Depth
Chamber Type
-80oC

Optional

  • Microprocessor based PID Temp. Controller with Printer output facility is required to record PV, SV, Actual Date/Time etc with variable print time interval, with 5000 line memory & Audio alarm facility in case of memory full.
  • Digital Vacuum Guage with printing facility.
