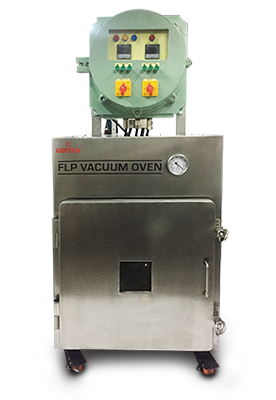

Flame Proof Vacuum Oven

  • Double walled in construction with Inner made of SS 304 & Outer GI Powder coated shade in REGULAR MODEL.
  • Inner made of SS 304 & Outer SS 304 Matt/Buff finish in GMP MODEL.
  • The high grade compressed Glasswool/ Cerawool insulation provided in between the wall to minimize the heat loss.
  • The Temp. is being controlled by FLP PID Temp. Controller with Digital Indicator & FLP PT-100 sensor. Vacuum Guage is provided at top of the oven. The all controls are Grouped in Flame Junction control Box.
  • The Control Panel includes FLP PID Temp. Controller, Vacuum Guage etc. and are safely placed on top of the Oven. Vacuum Valve & Gas inert line provided on one side of the unit.
  • Adjustable SS 304 non perforated trays are provided as per selection size of oven.
  • The Heaters are enclosed in pocket with flame proof junction Box
  • Maximum Vacuum :- 30” HG, Vacuum Loss: 1” After 24 Hours.
  • Temp. Range: 50°C to 200°C. Temp. Accuracy: ± 1°C to ± 2°C
Flame Proof Vacuum Oven
Cat No.
Inner Size
Capacity
Rating (Watts)
Shelves
Chamber type / Shape
CIC 17 A
12" Dia x 15" Depth
28 Ltrs
800
2
Round
CIC 17 B
15" Dia x 18" Depth
52.5 Ltrs.
1500
3
Round
CIC 17 C
12" L x 12" W x 12" Depth
28 Ltrs.
1000
2
Rectangular
CIC 17 D
14" L x 14" W x 14" Depth
45 Ltrs.
1500
3
Rectangular

Optional

  • FLP Safety Controller is required to take over control in case of FLP PID Temp. overshoot or if main FLP PID Temp. Controller is out of order.
  • PLC Based Touch screen Control System with printer OUTPUT facility.
