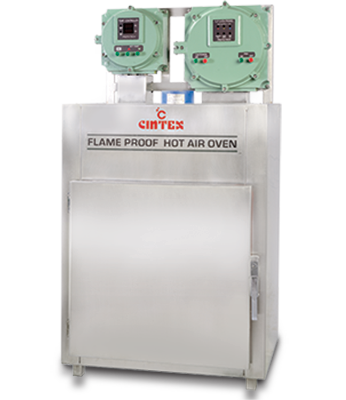

Flameproof Hot Air Oven

  • Inner made of heavy guage SS 304 & Exterior made of GI Powder Coated Shade in REGULAR MODEL.
  • Inner made of heavy guage SS 304 & Exterior SS 304 Matt/Buff finish in GMP MODEL.
  • The high grade compressed glasswool/cerawool insulation is provided in between the wall to minimize the heat loss.
  • The Temp. is being controlled by FLP PID Temp. Controller with FLP PT-100 class A sensor.
  • The Air Circulation is being performed by FLP heavy duty motorized blower firmly installed at the top of the oven for better internal circulation & Temp. uniformity.
  • The Heating is provided by FLP SS Rod Type Heater clamped at 2 sides of the chamber having SS perforated bottom.
  • A fully insulated door with perfectly sealed food grade silicon gasket is provided.
  • A strong and easy mechanism of designed SS hinges & ball catch or handle lock to open/close the door is provided.
  • Temp. Range: 50°C to 250°C. Temp. Accuracy: ± 1°C to ± 2°C
  • Adjustable SS304 Rod type shelves is provided
Flame Proof Hot Air Oven
Cat No.
Inner Size (W x D x Ht)
Capacity
Shelves
CIC - 18A
18" x 18" x 18"
3.4 CFT / 96 Ltrs.
2
CIC - 18B
24" x 24" x 24"
8 CFT / 228 Ltrs.
3
CIC - 18C
24" x 24" x 36"
12 CFT / 342 Ltrs.
3
CIC - 18D
28" x 28" x 40"
18 CFT / 515 Ltrs.
3
To be operated on 440 Volts/ 3 Phase

Optional

  • PLC Based Touch screen Control System with printer OUTPUT facility.
  • FLP Safety Controller to take over control incase of Temp. overshoot or if main FLP Temp. Controller is out of order.
  • PRINTER OUTPUT: facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory.
