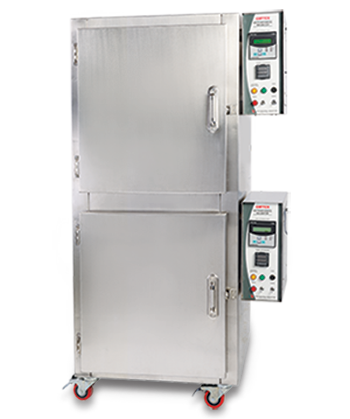

Dual Chamber

  • Double walled having SS 304 Inner and Exterior GI Powder Coated finish in REGULAR MODEL.
  • Interior 304 SS buffed finish and Exterior SS 304 matt finish in all GMP MODEL.
  • Units are highly insulated by Glasswool between the walls to minimize the heat exchange.
  • Highly advanced CFC free cooling system includes hermetically sealed compressors, condensor fan motor etc. in cooling model.
  • A key lockable insulated door having positive door gasket seals door perfectly.
  • Mechanical convection system (Motorized Blower) ensures even air distribution within the chamber
  • Heating is provided by ‘U’ type SS air heaters.
  • Removable SS304 Rod type shelves is provided.
  • Independent Automatic Autotuning Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT - 100 sensor for both chambers
Dual chamber
Cat No.
Compartment - 1 (W x D x Ht.)
Compartment - 2 (W x D x Ht.)
Total Capacity
Watts
CIC - 29A
18" x 18" x 18"
18" x 18" x 18"
192 Ltrs.
4000
CIC - 29B
24" x 24" x 24"
24" x 24" x 24"
456 Ltrs.
6000
Combination of Cooling Model Temp. range 2°C To 8°C/-20°C also available in above mentioned sizes, Prices on request.

Optional

  • PRINTER OUTPUT: facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
  • SAFETY CONTROLLER : required to take over control in case of Temp. overshoot or if main PID Temp. Controller fails.
  • 21 CFR PART 11 COMPLIANCE SOFWARE for Data Management.
  • AUDIO ALARM: facility to alert for Temp. Overshoot/undershoot
  • TIMER Facility.
  • PLC Based Touch screen Control System with printer OUTPUT facility.
  • Temperature Scanner having 4 temp. probes to monitor and record temp. inside the equipment with printing facility.
