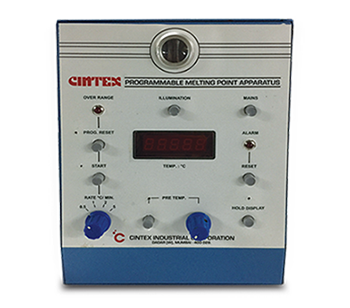

Digital Melting Point Apparatus

High Temperature

  • This melting point is designed to analize a sample materials accurately, quickly and precisely over a broad temperature range.
  • Usable to estimate the melting point of chemicals, pharmaceuticals, foods, plastics etc.
  • Choice of oil Bath Model or Dry Block Model.
  • The unit comprising heating block as a sample heating chamber which allows one sample to be tested at a time.
  • The temperature is being controlled by Microprocessor based Temp. controller having Digital display with PT-100 sensor
  • Sample is accomodated in standard melting point capillary tubes.
  • Heating rate programmable 0.5°C to 5°C.
Digital Melting Point Apparatus
Cat No.
Model
Temperature Range
Temp. Accuracy
Temp. Resolution
CIC - 88 A
Silicon Oil Bath Type
40oC to 300oC
0.5oC
1oC
CIC - 88 B
Oil Less Dry Block Type
40oC to 300oC
0.5oC
1oC
CIC - 88 A
Oil Less Dry Block Type
40oC to 300oC
0.1oC
0.1oC
