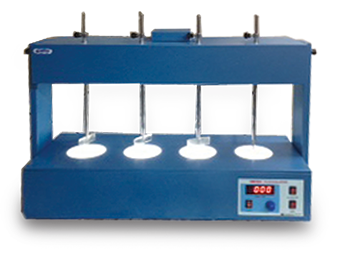

Digital Floculator (Jar Tester)

  • Ideal for determine optimum coagulant concentration to ensure efficient flocculation and save the cost.
  • Light weight G.I housing finished in powder coated shade.
  • Available in 4 or 6 paddle models for lab or field use.
  • Paddles are driven by electronically controlled variable speed electronic brushless steper motor.
  • Stirring paddles are made of stainless steel which reach a maximum depth of 9 inches.
  • Stirring rods can be adjusted removed individually during mixing.
  • Provide effective glare free illumination of floc samples by fluorescent tubes.
  • Diffuse plate is constructed of acrylic plastic and projects diffused light through the floc samples..
  • Stirrers accept standard round 1 Lt. cap. glass beakers.
Digital Floculator
Cat No.
Outer Dimension
No. of Paddles
Speed Display Common
Speed Range
Speed Accuracy
CIC - 30 A
10”D x 22”Ht x 30”W
4
Digital Red LED
5 to 150 RPM
± 1 RPM
CIC - 30 B
10”D x 22”Ht x 40”W
6
Digital Red LED
5 to 150 RPM
± 1 RPM
CIC - 30 C
10”D x 22”Ht x 30”W
4
Individual speed control with common digital indicator
5 to 150 RPM
± 1 RPM
CIC - 30 D
10”D x 22”Ht x 40”W
6
Individual speed control with common digital indicator
5 to 150 RPM
± 1 RPM

Optional

  • Digital Switch off timer with alarm of 99Hrs 59 min.
