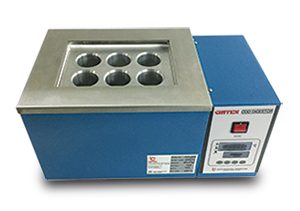

COD Digestor

  • Specially designed COD Digestor for COD method for monitoring waste water influent and Industrial process water.
  • Highly insulated Double walled Inner chamber of 304 SS & exterior GI powder coated finish.
  • The temperature is being controlled by Microprocessor based PID Temp. Controller with DIGITAL indicator & PT-100 as a sensor.
  • Digital Timer of 120 minute with Alarm.
  • Selection of MODEL – 6 tubes, 12 tubes or 15 tubes.
  • Suitable for 38 mm dia tubes and 600 mm Height air condenser.
  • Temp. Range :- 5°C Above ambient to 250°C. n Temp. Accuracy :- ± 1°C to ± 2°C.
COD Digestor
Cat No.
Block Size (W x L x Ht.)
Hole Size / Nos.
Glass Tube Size
Ratting (Watts)
CIC - 34 A
8" x 7" x 6"
40mm Dia x 80mm depth (6 Nos.)
38mm Dia. 3 x 2 Row
400
CIC - 34 B
12" x 7" x 6"
40mm Dia x 80mm depth (12 Nos.)
38mm Dia. 6 x 2 Row
600
CIC - 34 C
12" x 7" x 6"
40mm Dia x 80mm depth (12 Nos.)
38mm Dia. 5 x 3 Row
800
