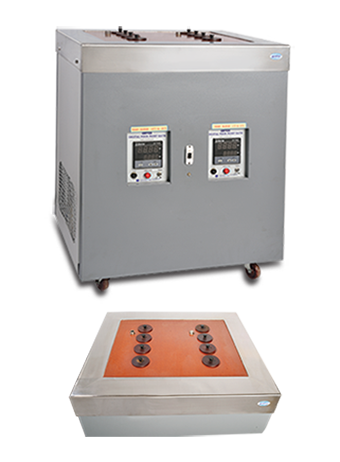

Cloud & Pour Point Bath (Cooling)

  • The unit is designed to meet the test method of ASTM D-2500-88/D-97.
  • For use to carry test of any petroleum oil as per test method.
  • The bath is triple walled in construction with inner chamber made of SS 304 & Exterior of G.I sheet duly finished in Powder coated shade.
  • The unit have 4 Compartment for 4 different temperature range in (STANDARD UNIT)
    • 1st compartment : (-) 01oC to (-) 02oC
    • 2nd compartment : (-) 15oC to (-) 18oC
    • 3rd compartment : (-) 32oC to (-) 34oC
    • 4th compartment : (-) 47oC to (-) 51oC
  • The top surface of units is of bakelite thick sheet for easy cleaning
  • Each compartment having 4 test jacket made of copper cylindrical flat bottom - 45 mm dia x 115 mm HT.
  • Test jar made of clear cylindrical glass flat bottom 30 to 33.5 mm dia x 115 to 125 mm height
  • All 4 compartment having 4 cooling system which includes hermetically sealed compressor, condenser, fan motor etc CFC free Cooling system.
  • All 4 Compartment Temperature are being controlled by separate Microprocessor based PID temperature controller with Digital indication
  • Selection of single, two or three chamber also.
Cloud & Pour Point Bath
Cat No.
Chamber Size(W x L x Ht.)
AVAILABLE COMPARMENT / CHAMBER(UNIT-TYPE)
Test Jacket In Each Chamber
Temp. Range
CIC - 103 A
7" x 14" x 6"
4 Chamber Compact
4 Nos. x 4
-1oC to -2oC, -15oC to -18oC,
-32oC to -34oC, -47oC to -51oC
CIC - 103 B
7" x 14" x 6"
4 Chamber Standard
4 Nos. x 4
-1oC to -2oC, -15oC to -18oC,
-47oC to -51oC
CIC - 103 C
7" x 14" x 6"
2 Chamber Medium
4 Nos. x 2
-1oC to -2oC, -15oC to -18oC
CIC - 103 D
7" x 14" x 6"
1 Chamber Economy
4 Nos. x 1
-32oC to -34oC
-700oC temp range available. Prices on request.

Optional

  • SAFETY CONTROLLER required to take over control in case of Temp. overshoot or if main PID Temp. Controller fails.
  • PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
  • AUDIO ALARM facility to alert for Temp. Overshoot/undershoot.
  • TIMER facility.
  • 21 CFR PART 11 COMPLIANCE SOFTWARE for Data Management.
