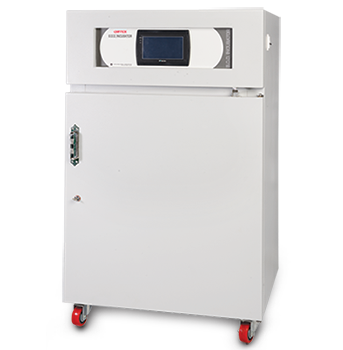

Bod Incubator

Regular – GMP - CGMP Models

  • Double walled Inner having SS 304 & Exterior GI Powder Coated finish in REGULAR MODEL.
  • Interior 304 SS buffed finish and Exterior SS 304 matt finish in all GMP – cGMP series.
  • Units are highly insulated by PUFF/Wool between the walls to minimize the heat exchange.
  • Highly advanced CFC free cooling system includes hermetically sealed compressor, condensor & fan motor.
  • A full length Inner glass door for observation of test without disturbing temperature equilibrium.
  • A key lockable insulated door having positive door gasket seals door perfectly.
  • Mechanical convection system (Motorized Blower) ensures even air distribution within the chamber.
  • Removable SS 304 Rod type shelves.
  • Automatic autotuning Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT – 100 sensor.
  • Electrical safety includes ELCB, Contactor.
Bod Incubator
Regular Model
GMP Model
Inner Size (L x D x Ht.)
Capacity
Temp. Range Accuracy
Shelves
71 A
72 A
18" x 18" x 28"
5.25 CFT / 150 Ltrs.
5oC to 60oC (within +/- 1oC)
2
71 B
72 B
24" x 24" x 24"
8 CFT / 228 Ltrs.
5oC to 60oC (within +/- 1oC)
3
71 C
72 C
24" x 24" x 36"
12 CFT / 342 Ltrs.
5oC to 60oC (within +/- 1oC)
3
71 D
72 D
26" x 26" x 36"
14 CFT / 400 Ltrs.
5oC to 60oC (within +/- 1oC)
4
71 E
72 E
28" x 28" x 40"
18 CFT / 520 Ltrs.
5oC to 60oC (within +/- 1oC)
4
71 F
72 F
36" x 36" x 40"
30 CFT / 850 Ltrs.
5oC to 60oC (within +/- 1oC)
5
71 G
72 G
38" x 38" x 44"
36 CFT / 1040 Ltrs.
5oC to 60oC (within +/- 1oC)
6

Optional

  • SAFETY CONTROLLER required to take over control in case of Temp. overshoot or if main PID Temp. Controller fails.
  • PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
  • PLC Based Touch screen Control System with printer OUTPUT facility.
  • AUDIO ALARM facility to alert for Temp. Overshoot/undershoot.
  • TIMER facility.
  • 21 CFR PART 11 COMPLIANCE SOFTWARE for Data Management.
  • Standby cooling system.
  • Temperature Scanner having 4 temp. probes to monitor and record temp. inside the equipment with printing facility.
