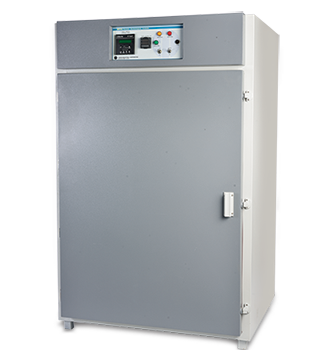

Bact Incubator

Regular – GMP - Models

  • Ideal for Sterilization, drying heat treatment and thermal testing.
  • Triple walled in construction with Inner made of Stainless Steel 304 and Exterior of GI/MS sheet duly finished in powder coated shade in regular model.
  • Inner SS 316 or SS 304 Exterior SS 304 Matt/Buff finish in GMP/CGMP Models.
  • High quality compressed glasswool insulation between Inner wall and outer wall to prevent heat-loss.
  • A fully insulated door with sturdy brass SS hinges with handle lock and gasket with perfect sealing is provided to open/ close the door.
  • A full length inner glass door is provided for clear observation of test.
  • Automatic Autotuning Microprocessor based PID Controller with Dual Digital Indicator.
  • Air Circulation performed by motorized blower for uniform distribution of temperature within chamber.
  • Available with SS304 Rod type shelves.
  • Temp. Range: 5oC above ambient to 6oC.
  • Temp. Accuracy: ± 0.5oC
Bact Incubator
Cat No.
Inner Size (W x D x Ht.)
Outer Size (W x D x Ht.)(APP.)
CFT
Ltrs.
Watts
Shelves
CIC - 16 / 20
14" x 14" x 14"
27" x 23" x 37"
1.6
45 Ltrs.
125
2
CIC - 16 / 20
18" x 18" x 18"
31" x 25" x 41"
3.4
96 Ltrs.
150
2
CIC - 16 / 20
18" x 18" x 24"
31" x 26" x 47"
4.5
128 Ltrs.
175
3
CIC - 16 / 20
24" x 24" x 24"
37" x 33" x 47"
8
228 Ltrs.
200
3
CIC - 16 / 20
24" x 24" x 36"
37" x 33" x 59"
12
342 Ltrs.
300
3
CIC - 16 / 20
28" x 28" x 40"
41" x 37" x 64"
18
515 Ltrs.
400
3

Optional

  • SAFETY CONTROLLER required to take over control in case of Temp. overshoot or if main PID Temp. Controller fails.
  • PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
  • Touch Screen HMI facility.
  • AUDIO ALARM facility to alert for Temp. Overshoot/undershoot.
  • TIMER facility.
  • 21 CFR PART 11 COMPLIANCE SOFTWARE for Data Management.
  • PLC Based Touch screen Control System with printer OUTPUT facility.
