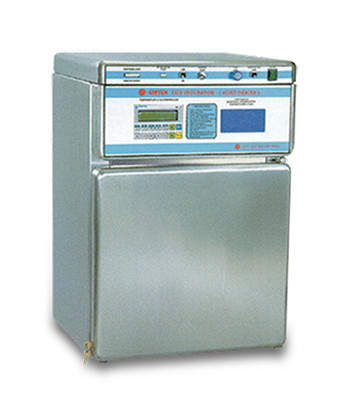

Automatic CO2 Incubator

Water Jacketted (Regular – GMP - Model)

  • Triple walled in construction with Inner Jacket made of SS 304 and Exterior made of GI sheet duly finished in powder coated shade.
  • The high grade layer of compressed foam Insulation provided in between the Jacket and wall to avoid heat exchange.
  • The Temp. is being controller by Microprocessor Based PID Controller with % Indicator and imported TC Sensor.
  • The Temp. is being controller by Microprocessor Based PID Temp. Controller with Digital Indicator and PT-100 sensor
  • All control grouped at top of the unit for easy access.
  • Temp. Range: 5°C Above Ambient to 60°C, Temp. Accuracy: ± 0.1°C, Temp. Uniformity: ± 0.2°C.
  • CO2 Range: 0% to 20%, CO2 Uniformity: ± 0.2%, CO2 Stability: 0.1%
  • The Shelves are adjustable to relocate at desired height if needed.
  • The Humidity Pan supplied for natural humidification upto 98% RH at 37°C.
  • The unit includes the following.
    1. Online filters to prevent contamination.
    2. Audible and Visible Alarm Indicates Co2 deviation 1% above or below set point
    3. Low watt Heater in Outer Door prevents contamination.
    4. Automatic shut off prevent gas dumping if power fails.
    5. The matched thermister Co2 sensor.
    6. Audible and visible alarm indicates Temperature deviations 1°C above or below set point.
Automatic Co2 Incubator
Cat No.
Inner Chamber Size (W x D x Ht.)
Shelves
Capacity
CIC - 73 A
14" x 14" x 14"
2
45 Ltrs.
CIC - 73 B
18" x 18" x 18"
2
96 Ltrs.
CIC - 73 C
20" x 20" x 28"
3
184 Ltrs.
NOTE: If Cooling in above chamber required then it can be provided from 15°C to 60°C. Prices on request.

Optional

  • PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
  • 21 CFR PART 11 COMPLIANCE SOFTWARE for Data Management.
  • CO2 Regulator with charging line.
  • Audio alarm facility for Temp. & RH% Overshoot.
  • Calibrated LUX & UV meters.
