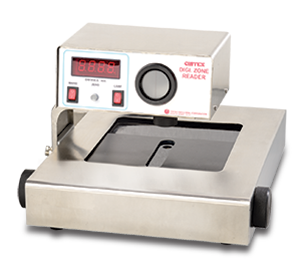

Antibiotic Zone Reader

Regular – GMP - Model

  • This is very compact and designed for measuring the diameter of finished zone in petridish, for determining the strength of antibiotic materials.
  • Ext. GI Powder Coated in REGULAR MODEL.
  • Unit made of SS 316 or SS 304 in GMP MODEL.
  • With Accuracy of 0.1 MM.
  • This Antibiotic Zone Reader measures the diameter of the inhibited zone within the range of 0 to 80 mm with accuracy of 0.1 mm.
  • The light from inside source of the base passes up through the transparent and semi transparent of the Agar then to a reflacting mirror situated in an arm above the unit.
  • The mirror reflects the light to a glass prism mounted at the magnified image of the zone of inhabitions is clearly visible on the prism.
Antibotic Zone Reader
Cat No.
Volts
Model
CIC - 89
230
Precision Model
