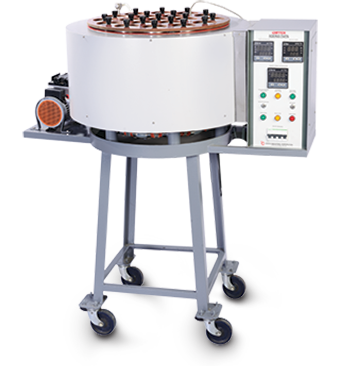

Ageing Oven

Regular - GMP - Model

  • Most suitable for Ageing test of PVC and Rubber.
  • Solid Aluminum heating Block (Circular) to accommodate cylinder cells
  • The aluminum cell has a center hole at the bottom which allows to enter pre-heated air from a small diapharm pump, the air changes per hour are same through all the cells.
  • The Temp. is being controlled by Automatic autotuning type Microprocessor based PID Temp. Controller with Dual Digital Indicator and PT-100 sensor.
  • The system incorporate with Digital timer of 99 hours.
  • Selection of Model 7 cells or 19 cells as per BS specification.
Ageing Oven GMP Model
Cat No.
Model Cell No.
Cell Size
Temp. Range
Temp. Accuracy
CIC - 102
7
75 mm Dia x 305 mm ht.
10oC Above ambient to 230oC
Within ± 2oC
CIC - 102
19
75 mm Dia x 305 mm ht.
10oC Above ambient to 230oC
Within ± 2oC
Model with Working Temp. upto 350°C available.
