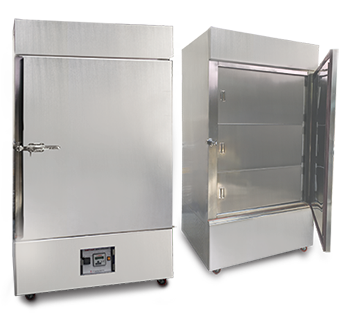

Deep Freezer

  • Ideally designed for storage of Blood components, serum, vaccines and medicines.
  • Double walled Inner SS 304 and Exterior GI Powder Coated finish in REGULAR MODEL.
  • Interior 304 SS and Exterior 304 SS matt finish in GMP MODEL
  • The high compressed PUFF insulation provided in between the wall to minimize the heat loss.
  • Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT – 100 sensor.
  • The Cooling Kit includes hermetically sealed compressor, condenser, fan motor etc. and are safely placed on top/bottom of the unit. Cooling Refrigerant is CFC free.
  • Highly insulated front opening door with silicone gasket having lockable handle provided for easy opening and closing of door.
  • Low Wattage heater provided on door to avoid freezing of door.
  • Adjustable SS304 Rod type shelves or lockable drawers in different model is provided.
Deep Freezer
Cat No.
Inner Size(L x W x Ht)
Capacity
Temp. Range
Shelves
Temp. Accuracy
CIC - 39 A
20" x 18" x 32"
6 CFT / 170 Ltr.
-0oC To -20oC
3
Within ±1oC to ±2oC
CIC - 39 B
24" x 22" x 36"
10 CFT / 290 Ltr.
-0oC To -20oC
4
Within ±1oC to ±2oC
CIC - 39 C
32" x 24" x 38"
17 CFT / 480 Ltr.
-0oC To -20oC
5
Within ±1oC to ±2oC
CIC - 39 D
20" x 18" x 32"
6 CFT / 170 Ltr.
-10oC To -50oC
3
Within ±1oC to ±2oC
CIC - 39 E
24" x 22" x 36"
10 CFT / 290 Ltr.
-10oC To -50oC
4
Within ±1oC to ±2oC
CIC - 39 F
32" x 24" x 38"
17 CFT / 480 Ltr.
-10oC To -50oC
5
Within ±1oC to ±2oC
CIC - 39 G
20" x 18" x 32"
6 CFT / 170 Ltr.
-30oC To -70oC
3
Within ±1oC to ±2oC
CIC - 39 H
24" x 22" x 36"
10 CFT / 290 Ltr.
-30oC To -70oC
4
Within ±1oC to ±2oC
CIC - 39 I
32" x 24" x 38"
17 CFT / 480 Ltr.
-30oC To -70oC
5
Within ±1oC to ±2oC

Optional

  • PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
  • PLC Based Touch screen Control System with printer OUTPUT facility.
  • AUDIO ALARM facility to alert for Temp. Overshoot/undershoot.
  • TIMER facility.
  • 21 CFR PART 11 COMPLIANCE SOFTWARE for Data Management.
  • Temperature Scanner having 4 temp. probes to monitor and record temp. inside the equipment with printing facility.
Note : -86oC Deep Freezers Available.
